Ball-Joint Rail

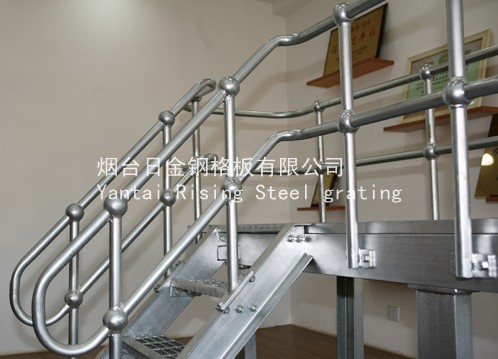

1.Ball-joint rail have advantages such as attractive appearance,convenient installation,robustness,and good anti-corrosive property after hot dip galvanizing.It is widely used in such industrial and construction engineering fields as electric power plant,petrochemicals,machinery,sewage treatment plant,waterworks,gardens,municipal roads,airports and wharfs.
![](/Files/Ball-joint.jpg)

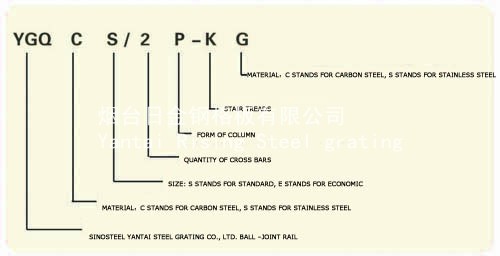

2.symbol
![](/Files/Ball-joint2.jpg)
![](/Files/1(1).jpg)
![](/Files/2(1).jpg)

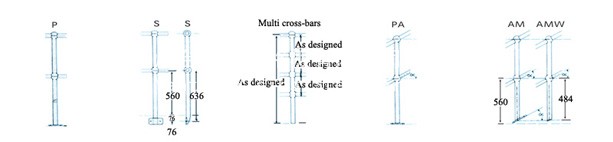

3.Column Form
![](/Files/3(1).jpg)
![](/Files/3(1).jpg)

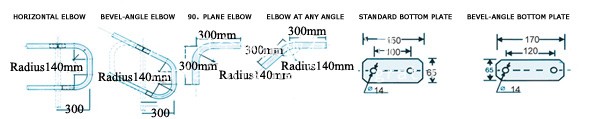

4.Form of Bend and Bottom Plate
![](/Files/5(1).jpg)
5.Specification Table for Rails

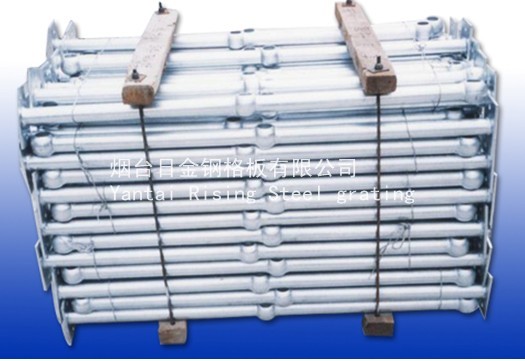

![](/Files/6(1).jpg)
![](/Files/7(2).jpg)
- Carbon steel's size is in front of the bracket in above table and stainless steel's size is in the bracket.
- Rail height:single rail manufactured according to design,double rail is 1,100mm,and triple rail is 1,200 mm.
- Column spacing:mainly four kinds as 1000,1200,1500,2000mm.
- Steel tube's size:subject to the design drawings confirmed by both parties.
